As a trusted supplier of X56 Line Pipe, I am often asked about the various welding methods suitable for this high - performance pipe. X56 Line Pipe is widely used in the oil and gas industry for transporting fluids over long distances. Choosing the right welding method is crucial to ensure the integrity, durability, and safety of the pipeline system. In this blog, I will discuss some of the most common welding methods for X56 Line Pipe.
Shielded Metal Arc Welding (SMAW)
Shielded Metal Arc Welding, also known as stick welding, is one of the oldest and most widely used welding processes. It is a manual welding method that uses a consumable electrode coated in flux. When the electrode is struck against the workpiece, an arc is formed, which melts the electrode and the base metal, creating a weld pool. The flux coating on the electrode decomposes during the welding process, producing a shielding gas that protects the weld pool from atmospheric contamination.
One of the main advantages of SMAW is its portability and simplicity. It can be used in various environments, including outdoor and remote locations, where access to power sources may be limited. SMAW is also suitable for welding thick - walled pipes and can be used to weld in all positions. However, this method has a relatively low welding speed and requires skilled operators to achieve high - quality welds. The quality of the welds can also be affected by factors such as electrode selection, welding current, and arc length.
Gas Metal Arc Welding (GMAW)
Gas Metal Arc Welding, commonly referred to as MIG (Metal Inert Gas) welding, is a semi - automatic or automatic welding process. It uses a continuous solid wire electrode that is fed through a welding gun and a shielding gas to protect the weld pool from oxidation and contamination. The shielding gas can be a mixture of argon and carbon dioxide, depending on the specific requirements of the welding job.
GMAW offers several advantages for welding X56 Line Pipe. It has a high welding speed, which can significantly reduce the overall welding time and increase productivity. The process also produces high - quality welds with good appearance and mechanical properties. Additionally, GMAW is relatively easy to learn and operate, making it a popular choice for both novice and experienced welders. However, this method is more sensitive to wind and draft, which can disrupt the shielding gas and affect the quality of the welds. It also requires a stable power supply and proper equipment setup.
Gas Tungsten Arc Welding (GTAW)
Gas Tungsten Arc Welding, also known as TIG (Tungsten Inert Gas) welding, is a manual welding process that uses a non - consumable tungsten electrode to create an arc. A shielding gas, usually argon, is used to protect the weld pool from atmospheric contamination. Filler metal may be added to the weld pool if necessary.
GTAW is known for its precision and high - quality welds. It is particularly suitable for welding thin - walled pipes and for making root passes in multi - pass welds. The process allows for excellent control of the weld pool and can produce welds with minimal distortion. GTAW is also capable of welding a wide range of materials, including X56 Line Pipe. However, it has a relatively low welding speed and requires a high level of skill and experience to operate effectively. The cost of equipment and shielding gas can also be relatively high.
Submerged Arc Welding (SAW)
Submerged Arc Welding is an automatic or semi - automatic welding process that uses a continuously fed electrode and a granular flux to cover the weld area. The arc is completely submerged under the flux, which protects the weld pool from atmospheric contamination and provides a high deposition rate.
SAW is ideal for welding thick - walled pipes and for long - length welds. It has a high welding speed and can produce high - quality welds with excellent mechanical properties. The process is also relatively clean, as the flux captures most of the welding fumes and slag. However, SAW requires a more complex setup and is typically used in a fixed welding position. It is also less suitable for welding in tight spaces or in all positions.
Flux - Cored Arc Welding (FCAW)
Flux - Cored Arc Welding is a semi - automatic or automatic welding process that uses a tubular electrode filled with flux. The flux in the electrode provides the shielding gas and the slag to protect the weld pool. FCAW can be used with or without an external shielding gas, depending on the type of electrode used.
This welding method offers a high deposition rate and is suitable for welding thick - walled pipes. It can be used in various positions and is relatively easy to operate. FCAW is also more tolerant of dirty or rusty surfaces compared to some other welding methods. However, the quality of the welds can be affected by factors such as electrode selection and welding parameters. The process also produces more fumes and slag compared to some other welding methods.
Selection of Welding Method
When selecting a welding method for X56 Line Pipe, several factors need to be considered. These include the thickness of the pipe wall, the welding position, the welding environment, the required welding speed, and the quality requirements of the welds. For example, if the pipe has a thick wall and the welding needs to be done in a fixed position, SAW or SMAW may be suitable. If high - speed welding is required and the environment is relatively stable, GMAW or FCAW may be a better choice.
It is also important to ensure that the welding method is compatible with the chemical composition and mechanical properties of the X56 Line Pipe. The welding process should not cause any significant changes in the microstructure or mechanical properties of the pipe. Additionally, proper pre - welding and post - welding treatments, such as pre - heating and stress relieving, may be required to ensure the quality and integrity of the welds.
Related Products

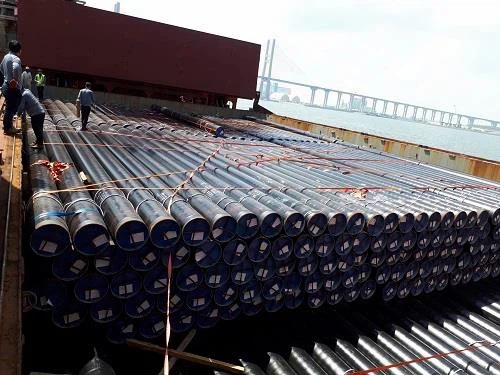

If you are also interested in other types of pipes, we also offer KS D3564 Seamless Steel Pipe, X52 Line Pipe, and ASTM A106 Seamless Carbon Steel Pipe. These products have their own unique features and applications, and we can provide you with detailed product information and technical support.
Conclusion
In conclusion, there are several welding methods available for X56 Line Pipe, each with its own advantages and disadvantages. As a supplier of X56 Line Pipe, I understand the importance of choosing the right welding method to ensure the quality and performance of the pipeline system. Whether you are a pipeline construction company, an oil and gas operator, or a contractor, we can provide you with high - quality X56 Line Pipe and professional advice on welding methods.
If you have any questions about X56 Line Pipe or need to discuss your specific requirements, please feel free to contact us. We are always ready to assist you in finding the best solutions for your projects.
References
- AWS D1.1/D1.1M:2020, Structural Welding Code - Steel
- API 1104:2013, Welding of Pipelines and Related Facilities
- ASME Section IX:2019, Welding and Brazing Qualifications
